S-5-Z Mini Metal Roof Clamps
The Z Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

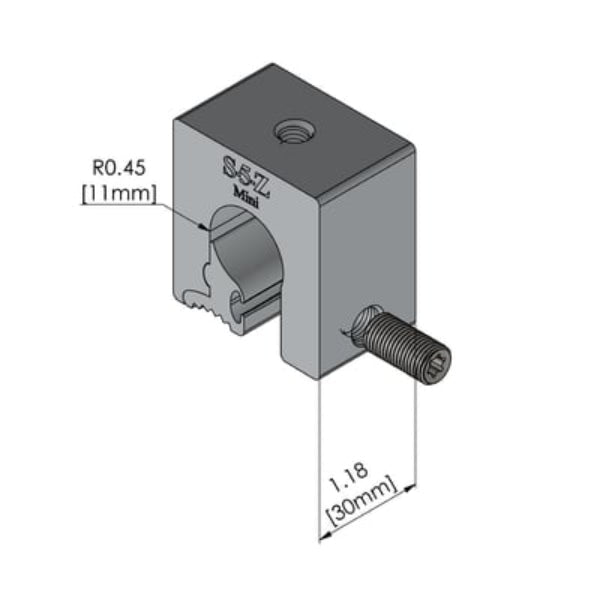

The Z Mini clamp is a bit shorter than the standard Z with one setscrew rather than two.
All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.
Specifications:

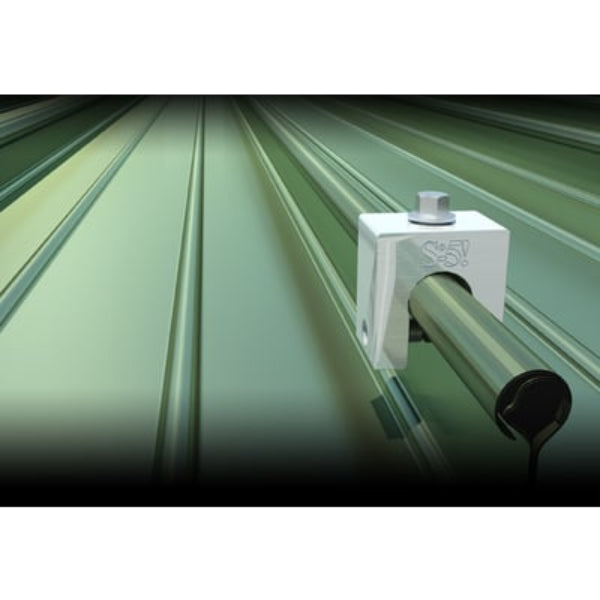

- Specially designed to fit Zip-Rib®, BEMO, Kalzip® and similar profiles with a round “bulb” seam configuration and seam diameters of ≤ 7/8” (22 mm)
- Two-piece clamp design means you can easily install anywhere along
the rib - Light and medium-duty applications, such as utility mounting
- Smaller than the standard S-5-Z
- One T-30 Torx round-point setscrew (Torx bit tip provided)
- No M8 bolt included
S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
