SKU: M48200TYP6
In Stock
Kingspan GreenGuard GG40-LG XPS Insulation Board - 2in x 4ft x 8ft - (48 Boards)
$4,197.50
Shipping calculated at checkout
Secure Checkout
30-Day Returns
Secure Payments
Customer Support
We accept

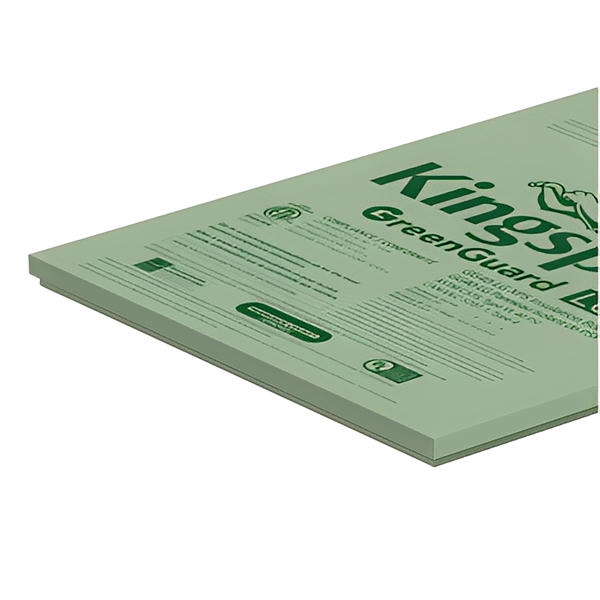

Kingspan GreenGuard GG40-LG XPS Insulation Board does not absorb moisture and retains its insulating properties over time, making it an ideal exterior insulation. With an R-Value of 5.0 per inch of thickness, the board increases the energy efficiency of your structures. Plus, it’s light weight, easy to handle, and easy to cut with a knife.
Kingspan GreenGuard GG40-LG XPS Insulation Board is designed for use in high load applications requiring compressive strength up to 40 psi. It meets ASTM C 578 Type VI requirements.
48 Boards Per Pallet
1536 Sq Ft Per Pallet
Features & Properties
- R-value of 5.0 per inch of thickness
- Retains insulating properties over time
- GWP of less than 50
- Maintains integrity
- Lightweight, durable...easy to use

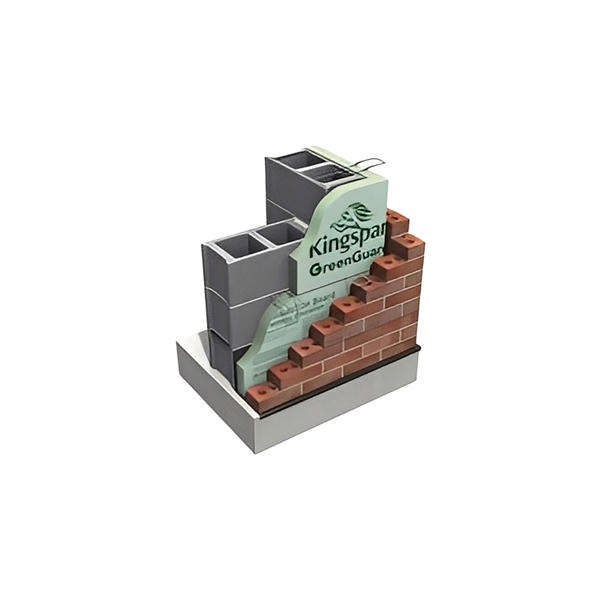

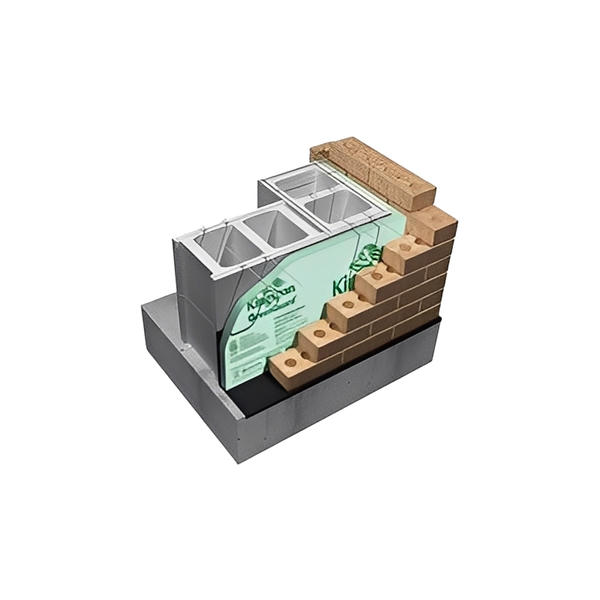

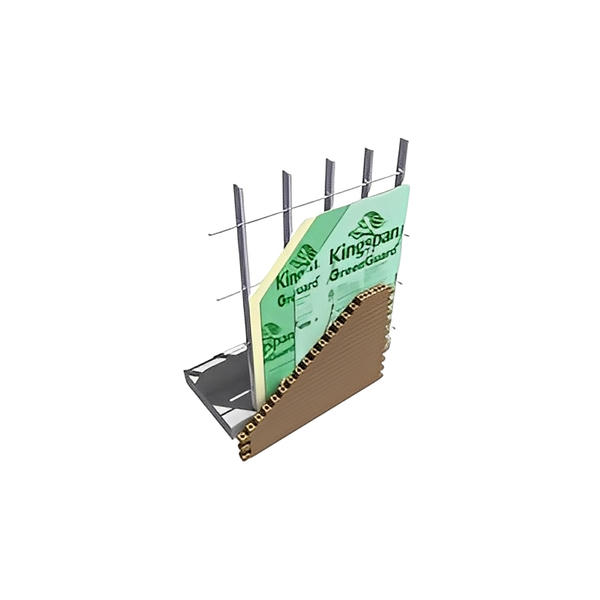

- Continuous Insulation (Ci) for walls

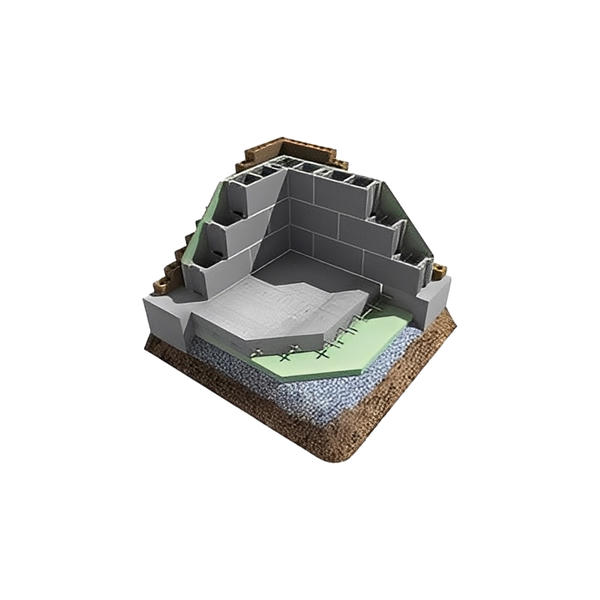

- Insulates foundation exteriors and protects against backfill damage
| Property | Test Method | Result |
| Nominal Thickness | 2 / 3 / 4 | |
| Nominal Board Width (ft) Nominal Board Length (ft) |
2 / 4
8
|
|
| Edge Profile |
Square Channeled |
|
| Property Type | ASTM C 578 | VI |
| Compressive Strength, Min. (psi@ 10% deflection) |
ASTM D 1621 |
40
|
| Water Absorption, Max. (% by volume) |
ASTM C 272 |
0.3
|
| Density, Min. (lb/ft) |
ASTM C 303 |
1.8
|
| Water Vapor Permeance, Max. (perm) |
ASTM E 96
(Dessicant Method)
|
1.1
|
| Service Temperature, Max (°F) | 165 | |
| Thermal | ||
|
Thermal Resistance, R-value
(°F.ft².hr / Btu per in thick) |
ASTM C 518 (@75°F Mean Temperature) |
5.0 |
| Thermal Conductivity, k-value (Btu.in / hr.ft.ºF) |
ASTM C 518
(@75°F Mean Temperature)
|
0.2 |
| Fire & Smoke | ||
| Flame Spread Smoke Developed |
ASTM E 84 / UL723 |
25 (Class A)
140
|
